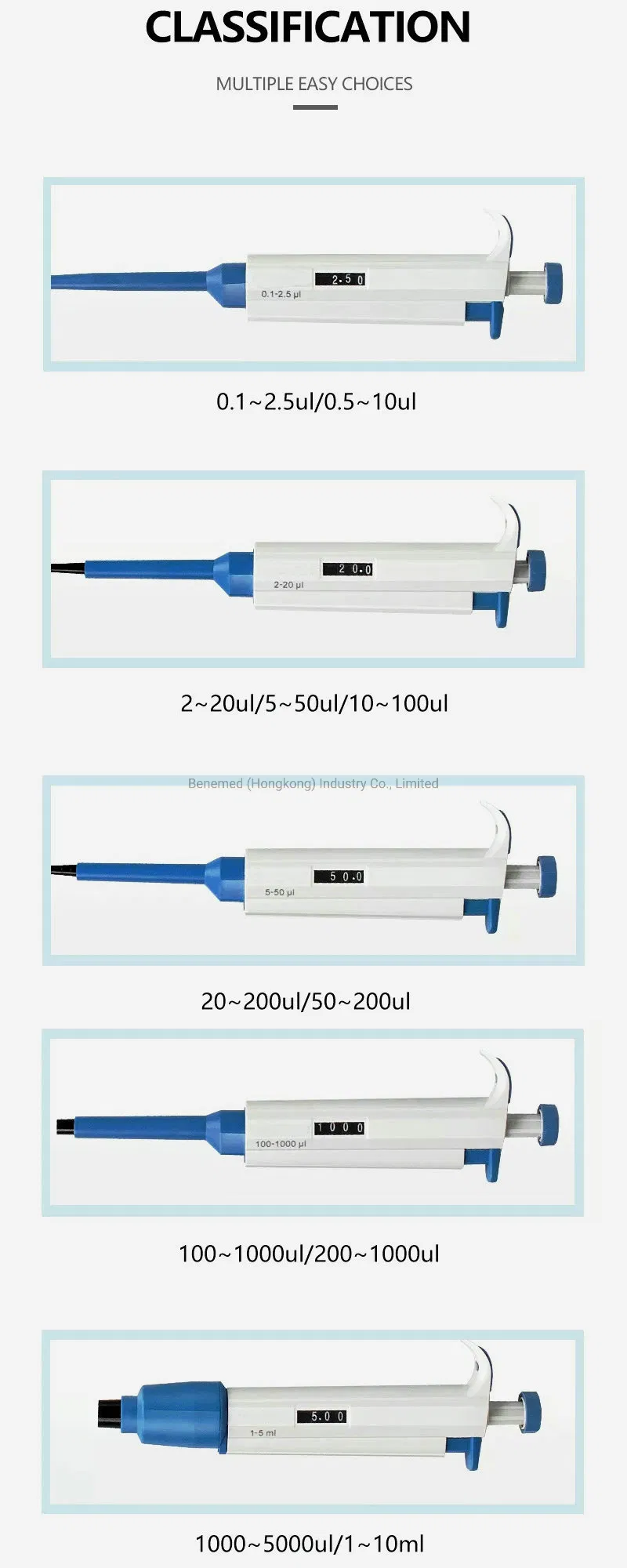

| Model | Capacity Range (μL) | Capacity (μL) | Permissible Error (%) | Repeatability Error (%) | Increment |
|---|---|---|---|---|---|
| WKYIII-0.1 | 0.1-2.5 | 0.1 | ±4.1 | ≤2.5 | 0.1 μL |
| 2 | ±2.1 | ≤2.5 | |||
| 2.5 | ±1.1 | ≤0.9 | |||
| 1 | ±4.0 | ≤2.0 | |||
| WKYIII-0.5 | 0.5-10 | 1 | ±4.0 | ≤2.0 | 0.1 μL |
| 5 | ±2.0 | ≤1.5 | |||
| 10 | ±1.0 | ≤0.8 | |||
| WKYIII-2 | 2-20 | 2 | ±3.5 | ≤2.0 | 0.5 μL |
| 10 | ±1.5 | ≤1.0 | |||
| 20 | ±1.0 | ≤0.6 | |||
| WKYIII-5 | 5-50 | 5 | ±4.0 | ≤1.5 | 0.5 μL |
| 25 | ±2.0 | ≤1.0 | |||
| 50 | ±1.0 | ≤0.8 | |||
| WKYIII-10 | 10-100 | 10 | ±1.0 | ≤1.5 | 10 μL |
| 50 | ±0.8 | ≤0.4 | |||
| 100 | ±2.0 | ≤0.3 | |||
| WKYIII-20 | 20-200 | 20 | ±2.0 | ≤1.0 | 10 μL |
| 100 | ±0.8 | ≤0.4 | |||
| 200 | ±0.8 | ≤0.3 | |||
| WKYIII-100 | 100-1000 | 100 | ±1.0 | ≤0.6 | 5.0 μL |
| 500 | ±0.6 | ≤0.4 | |||
| 1000 | ±0.8 | ≤0.3 | |||
| WKYIII-200 | 200-1000 | 200 | ±1.0 | ≤0.5 | 5.0 μL |
| 500 | ±0.9 | ≤0.4 | |||
| 1000 | ±0.8 | ≤0.3 | |||
| WKYIII-1000 | 1000-5000 | 1000 | ±1.0 | ≤0.4 | 50 μL |
| 2500 | ±0.9 | ≤0.3 | |||
| 5000 | ±0.9 | ≤0.5 | |||
| WKYIII-10ml | 1-10ml | 1000 | ±0.8 | ≤1.0 | 100 μL |
| 5000 | ±3.0 | ≤0.9 | |||
| 10000 | ±4.0 | ≤0.8 |
