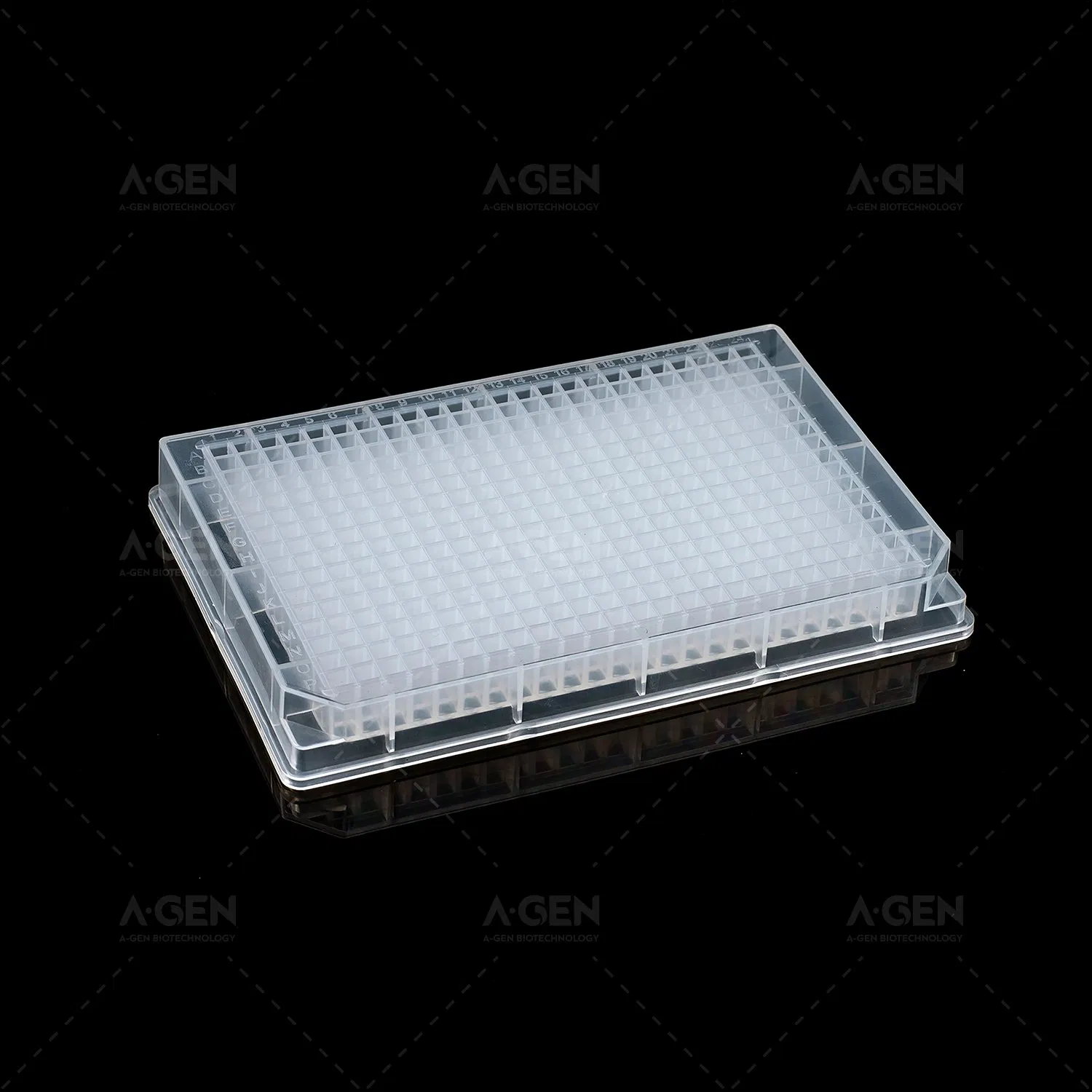

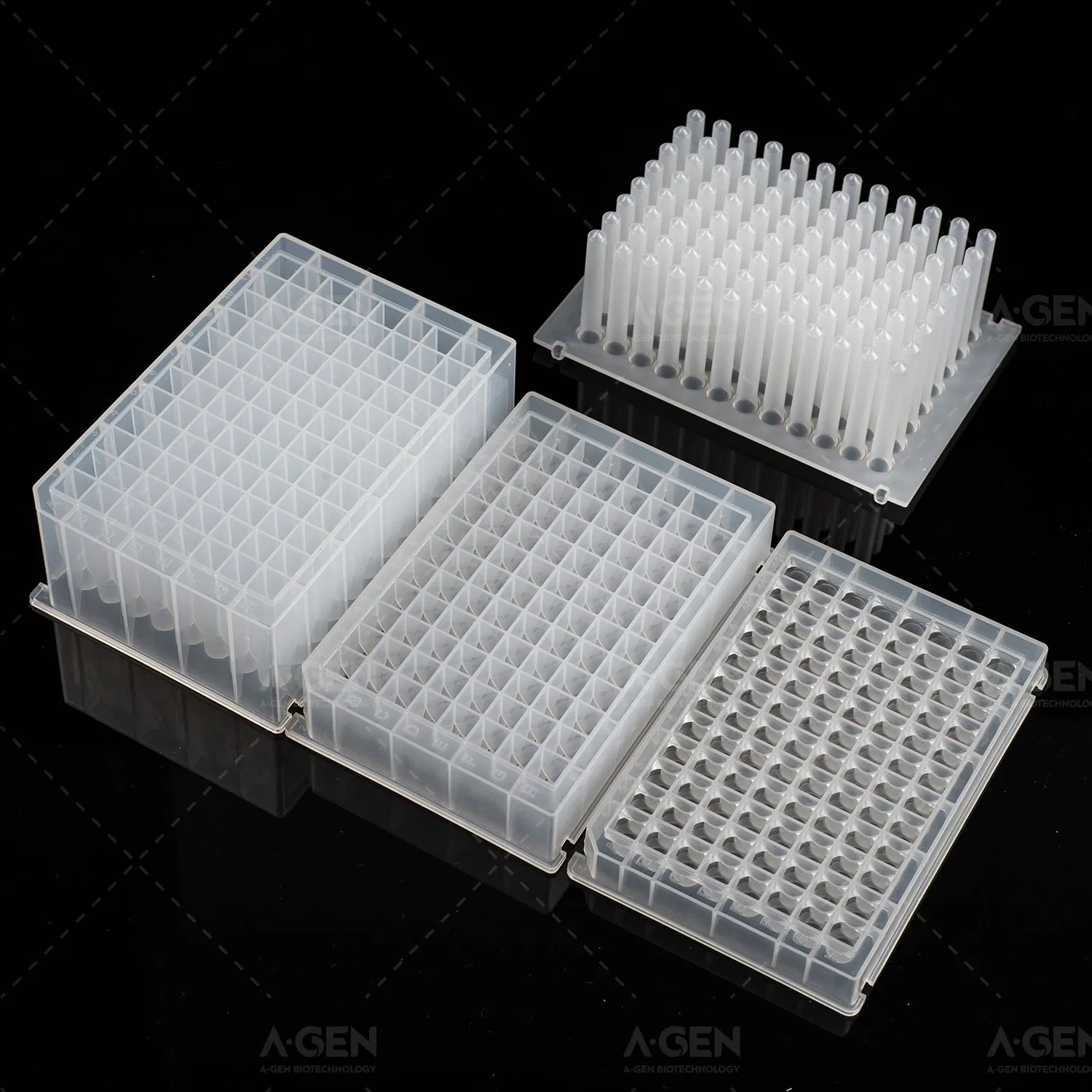

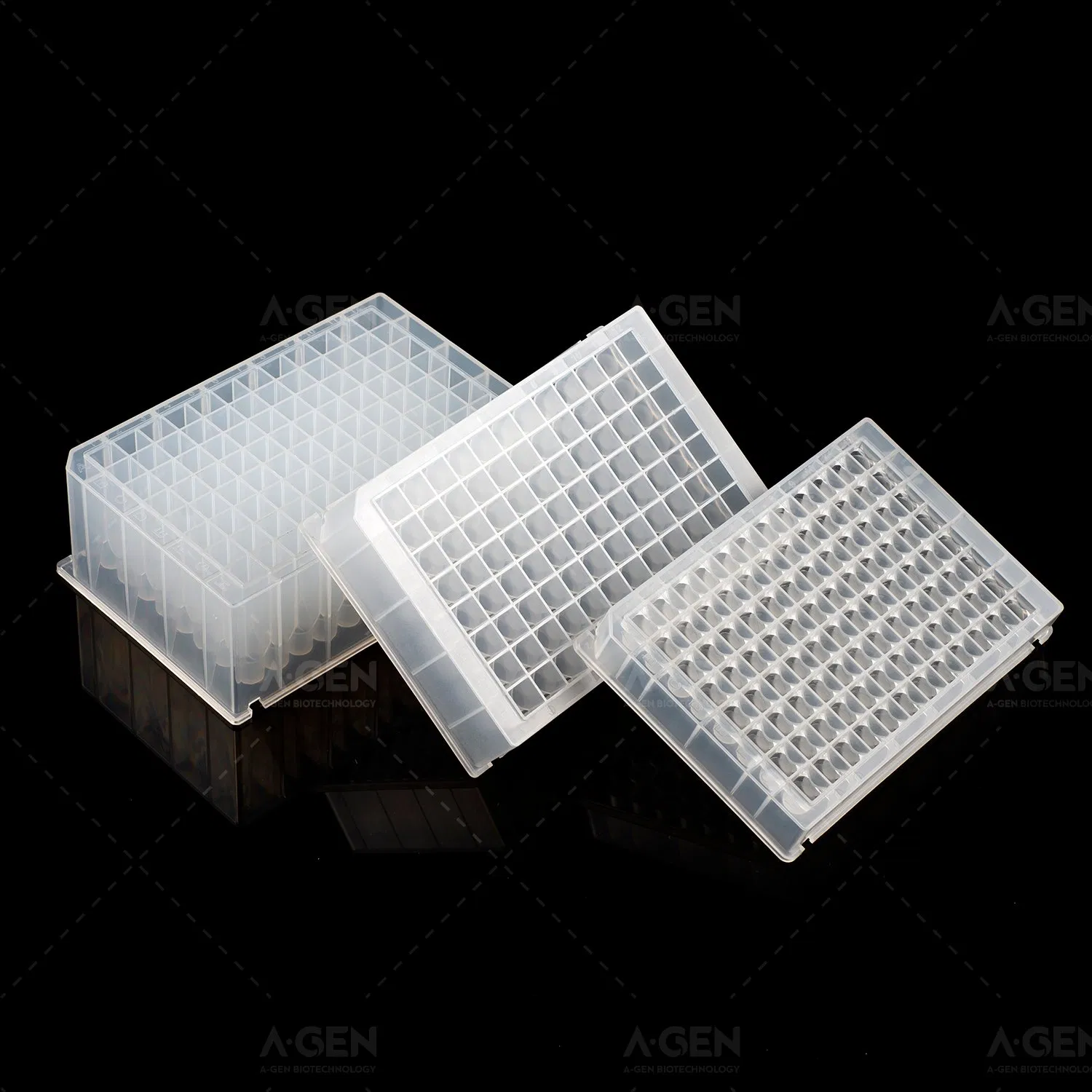

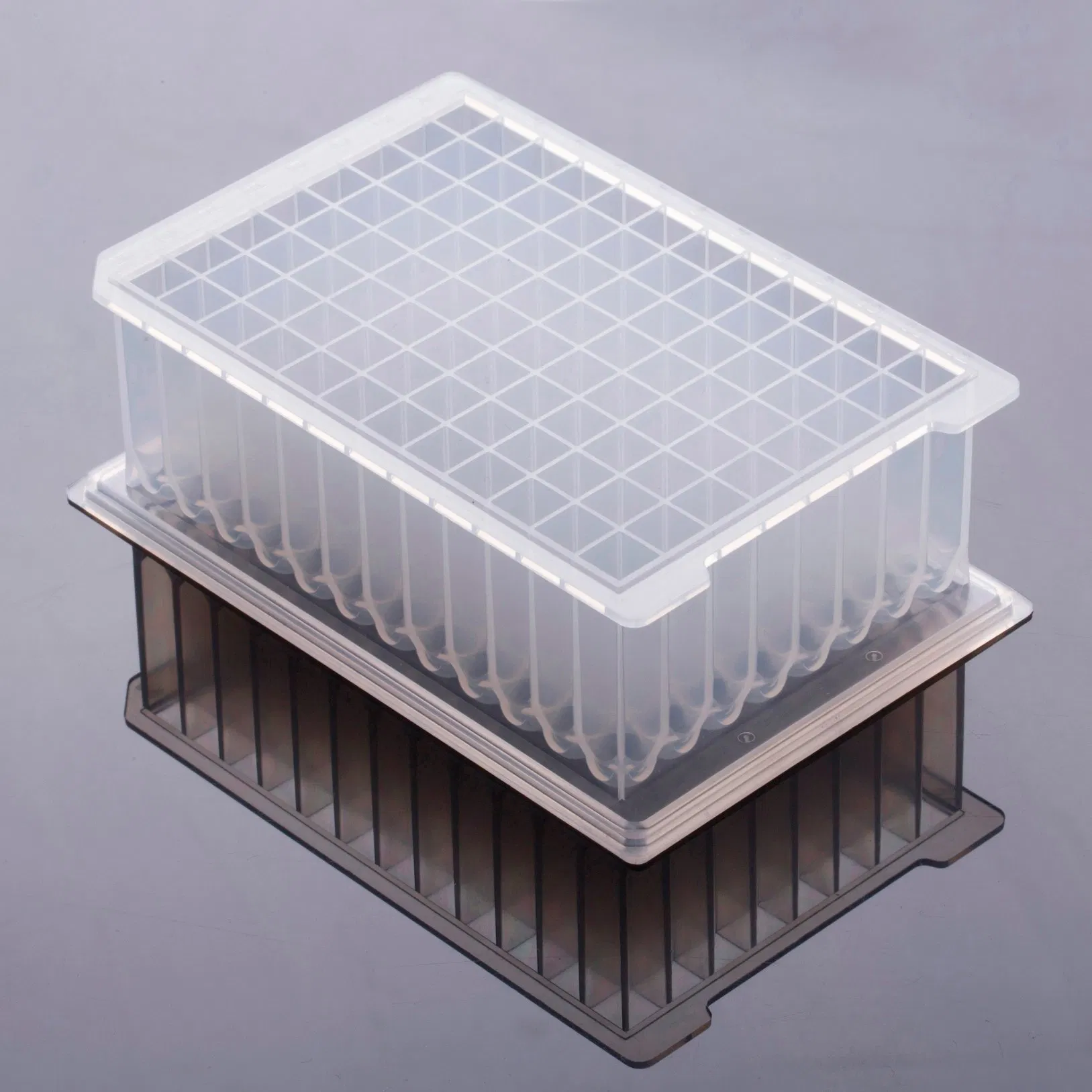

Multi Wells Lab Consumables Square Deep Well Plate

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Specifications

Model NO.
P-SQ
Bottom Shape
Detailed List
Color
Clear, Matt
Materials
Medical Grade Virgin Polypropylene
Style
Square
Treatment
Sterile or Non-Sterile Selectable
Stability
High Chemical Stability
Standard
Sbs/ANSI
Certification
ISO13485
Function
Assay Use
Dimensions
127.5X85.5mm
Capacity
6000ctns/Month

Product Overview

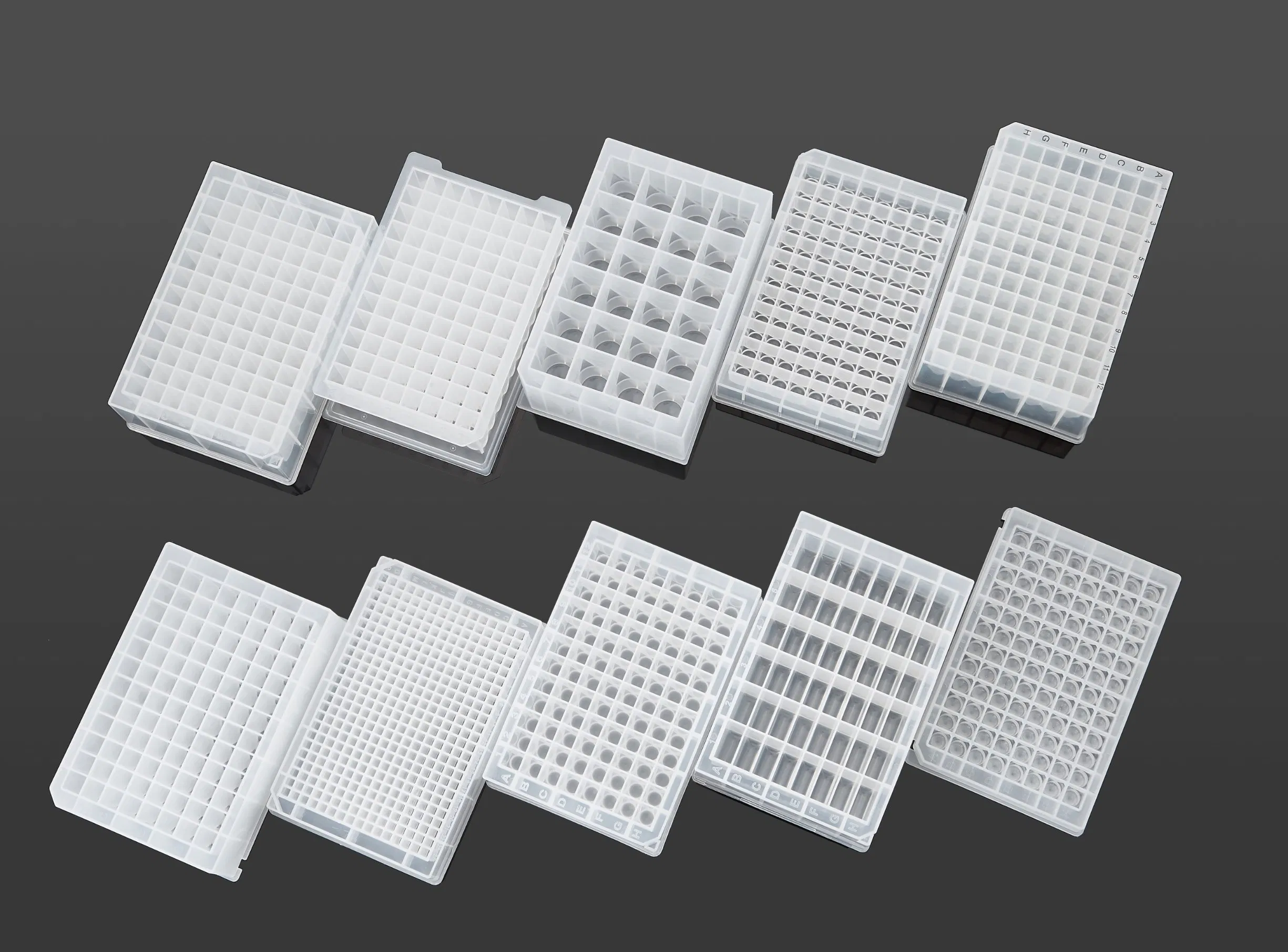

Deep Well Plate Options:
Available in various volumes, wells, and bottom configurations. Extra services include sterile options, low-retention surface, and matching covers.

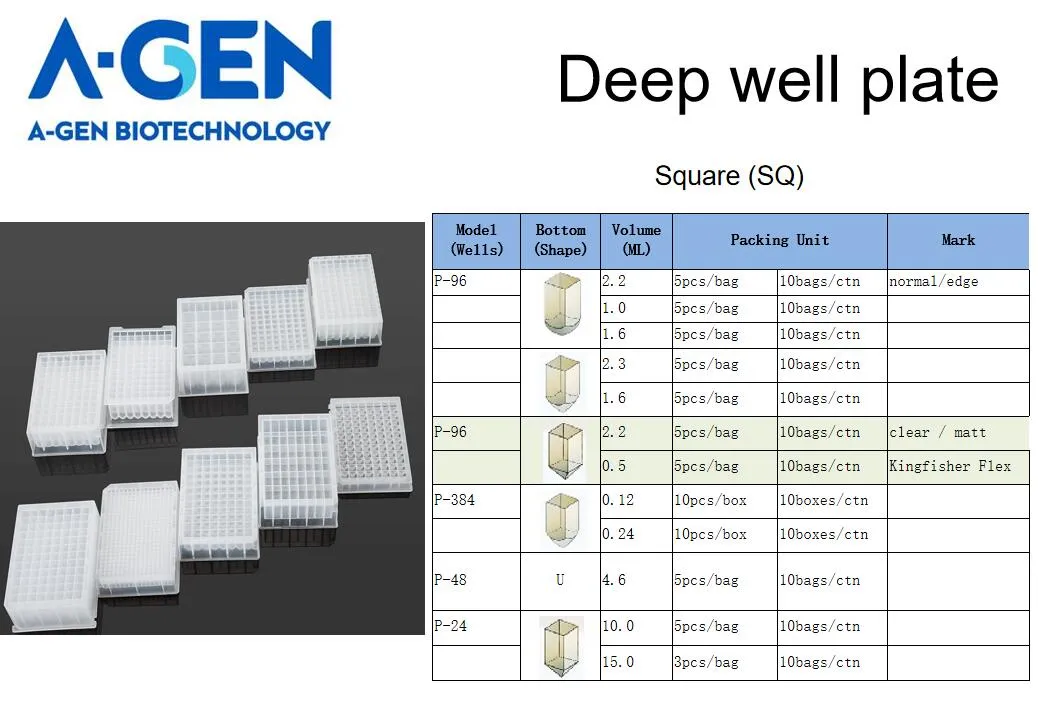

Square Deep Well Plate Details
No. Product Features
1Microplates can be stored under subzero temperatures from -40 to -80ºC.
2Maximum sustainable centrifuge force 4000g.
3Autoclavable at 20Psi, 121ºC for 20 minutes; great heating uniformity.
4Minimum residual liquid; low heavy metal content.
5High-quality medical PP material ensures no chemical reactions with test reagents; compatible with DMSO.
6Certified DNase/RNase and Pyrogen Free.
7Conformed to international SBS Standards.
8Three sealing options: adhesive seals, mat caps, and heat seals.
9Good flatness for secure long-distance transport after heat sealing.
10Produced and packed in Class 100,000 clean workshop.
11Alphabetical sorting and cut angle mark for convenient sample tracking.
12Separate article/batch number identification for quality tracking.
13Compatible with 8-strip, 24-well, and 96-well magnetic tip combs.

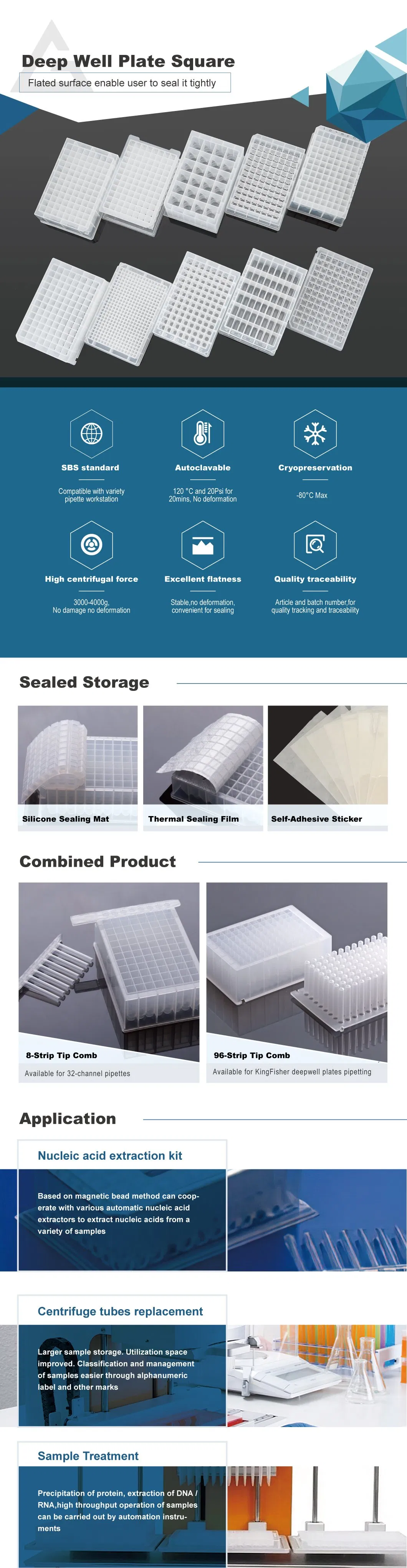

Technical Specifications Chart

Manufacturing & Services

OEM Service: Customized laboratory products tailored to specific requirements, focusing on high-quality medical plastic consumables.
Production Facility: State-of-the-art Class 100,000 clean-rooms with ISO 13485 certification, utilizing premium USP Class VI medical grade virgin polypropylene.
Quality Assurance: Products are free from slip agents, plasticizers, and biocides. Verified for use on mainstream scientific instruments.

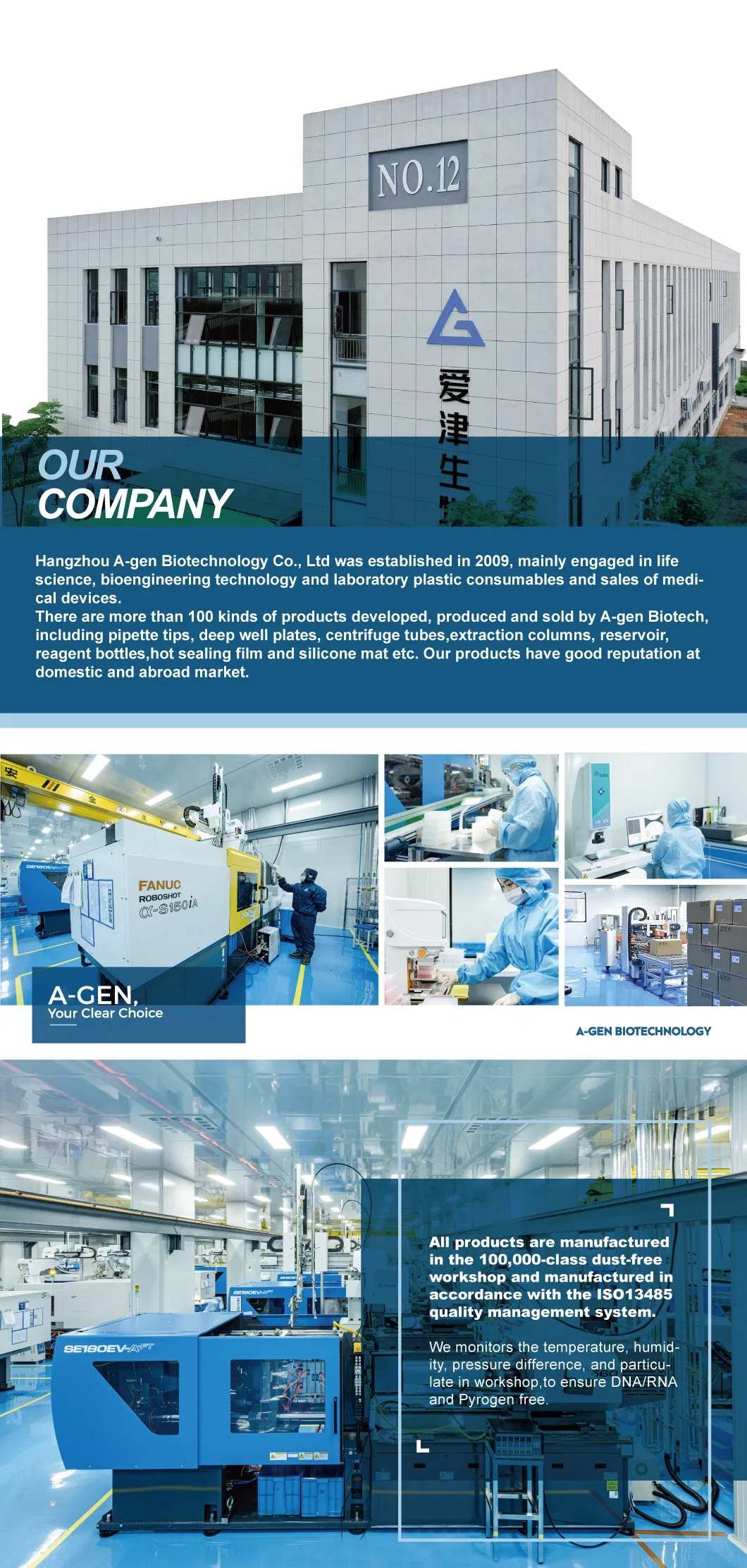

Production Facility View

Certifications

1. Registered ISO 13485:2016 for production and sales of medical laboratory plastic consumables.
2. Meets In Vitro Diagnostic Directive (98/79/EC) and harmonized standards EN ISO 14971:2019, EN ISO 18113-1:2011.

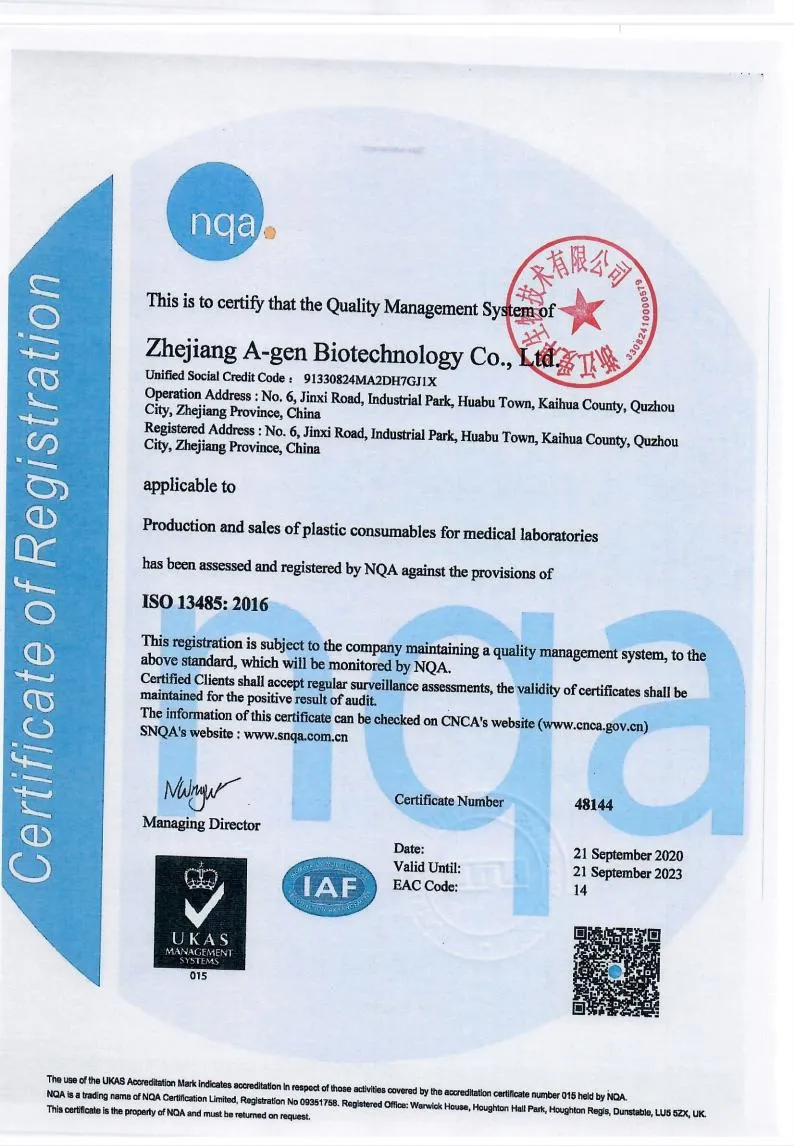

ISO Certification

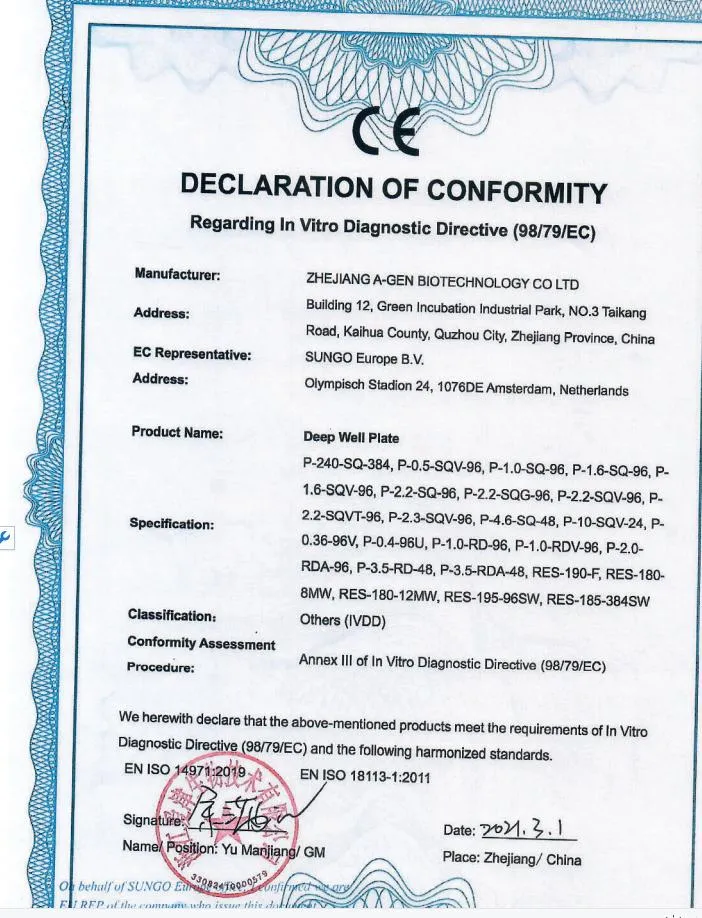

Quality Standard Certification

Why Choose Us

Factory Outlet
Wholesale Pricing
Guaranteed Quality
International Standards

Frequently Asked Questions

What temperature range can these plates tolerate?
The microplates are designed for extreme stability and can be stored in subzero temperatures ranging from -40ºC to -80ºC.
Are the deep well plates autoclavable?
Yes, they are autoclavable at 121ºC (20Psi) for 20 minutes, ensuring high standards of sterilization for laboratory use.
What materials are used in the manufacturing process?
We use premium USP Class VI high-quality medical grade virgin polypropylene resins, ensuring no chemical reactions with reagents.
Do these plates meet international standards?
Yes, all plates conform to international SBS Standards and are produced under ISO 13485:2016 certified quality management systems.
Are the products certified to be free of contaminants?
Absolutely. All products are certified to be DNase/RNase and Pyrogen-free, manufactured in a Class 100,000 clean workshop.
What sealing methods can be used with these plates?
There are three primary options for plate sealing: adhesive seals, mat caps, and heat seals, providing flexibility for different storage and transport needs.
