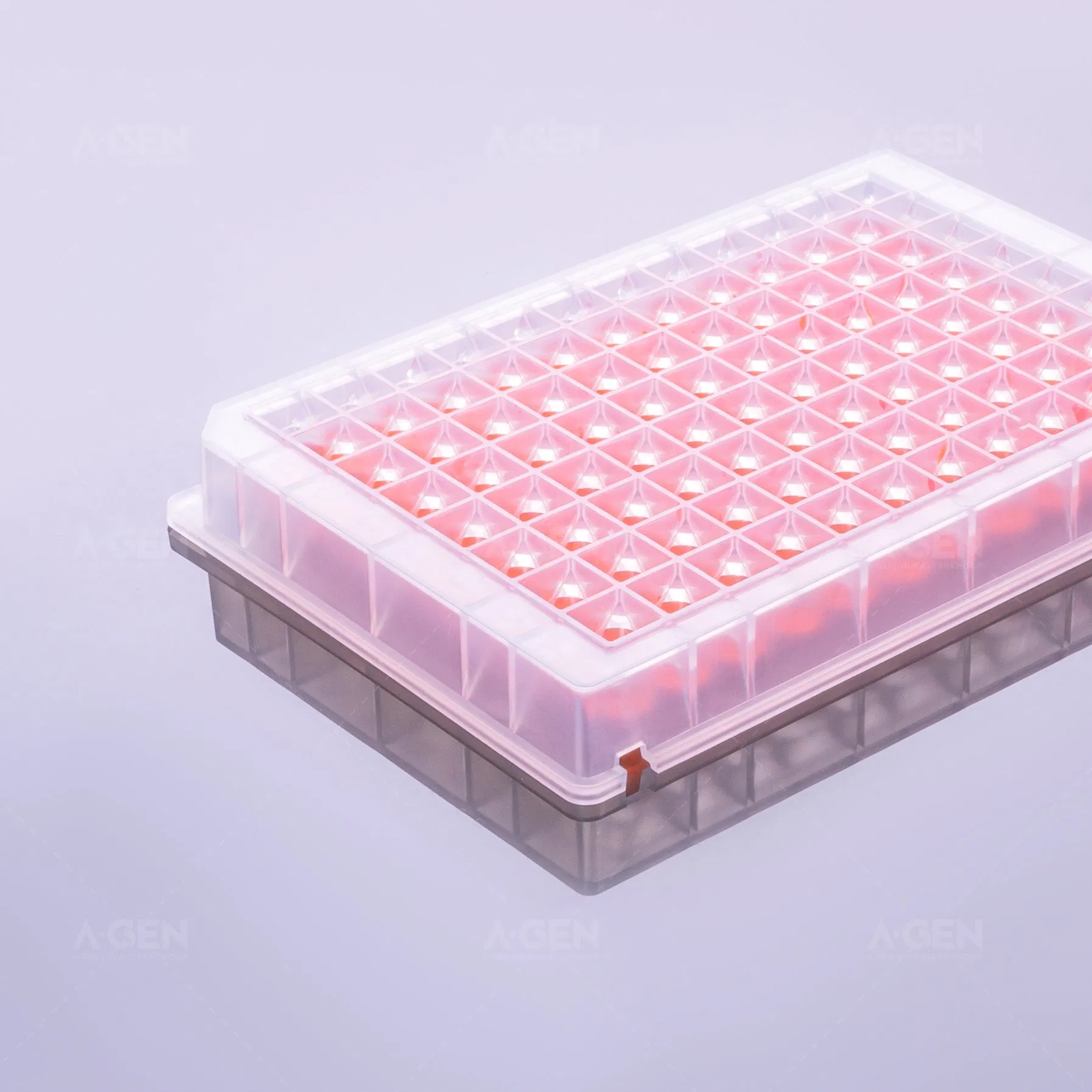

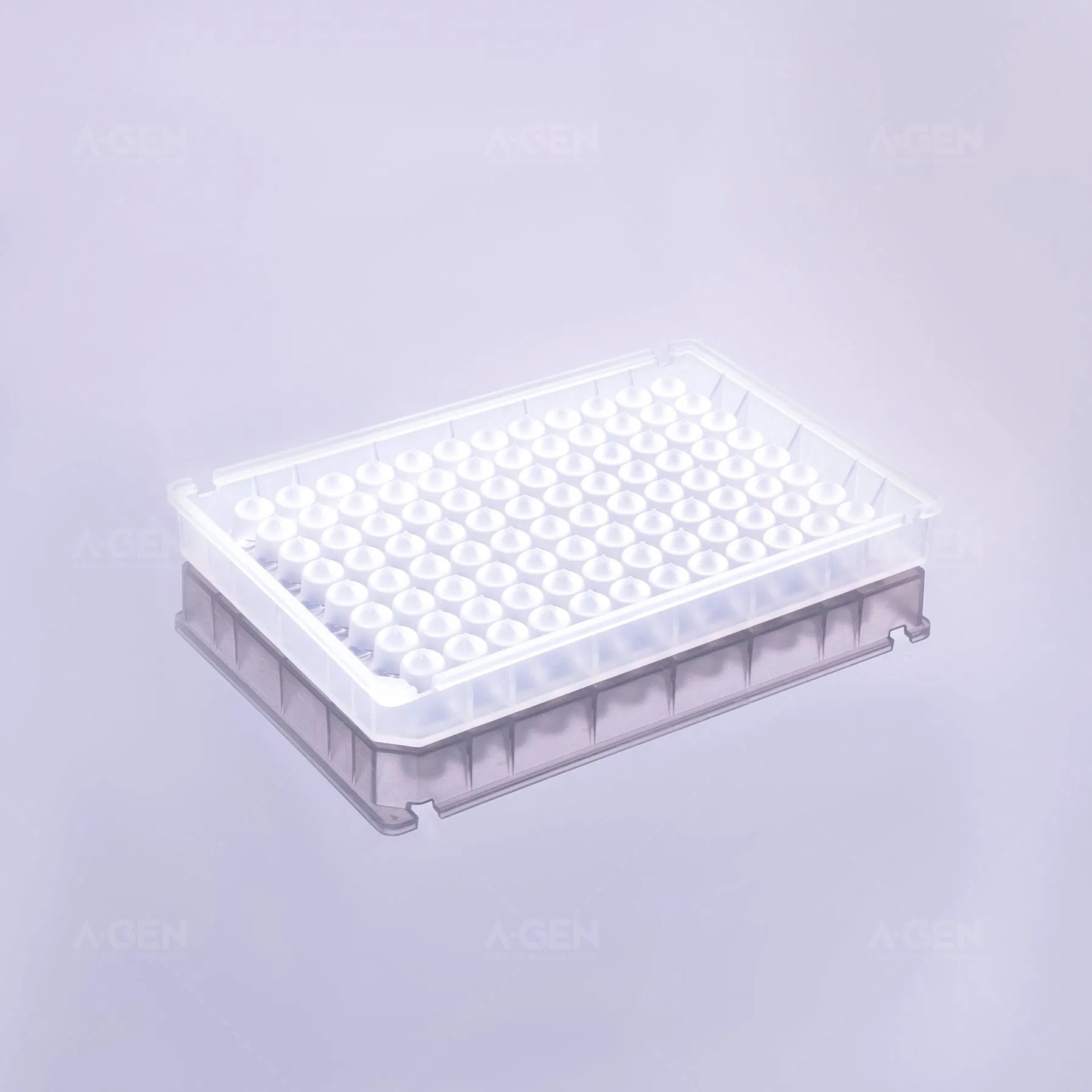

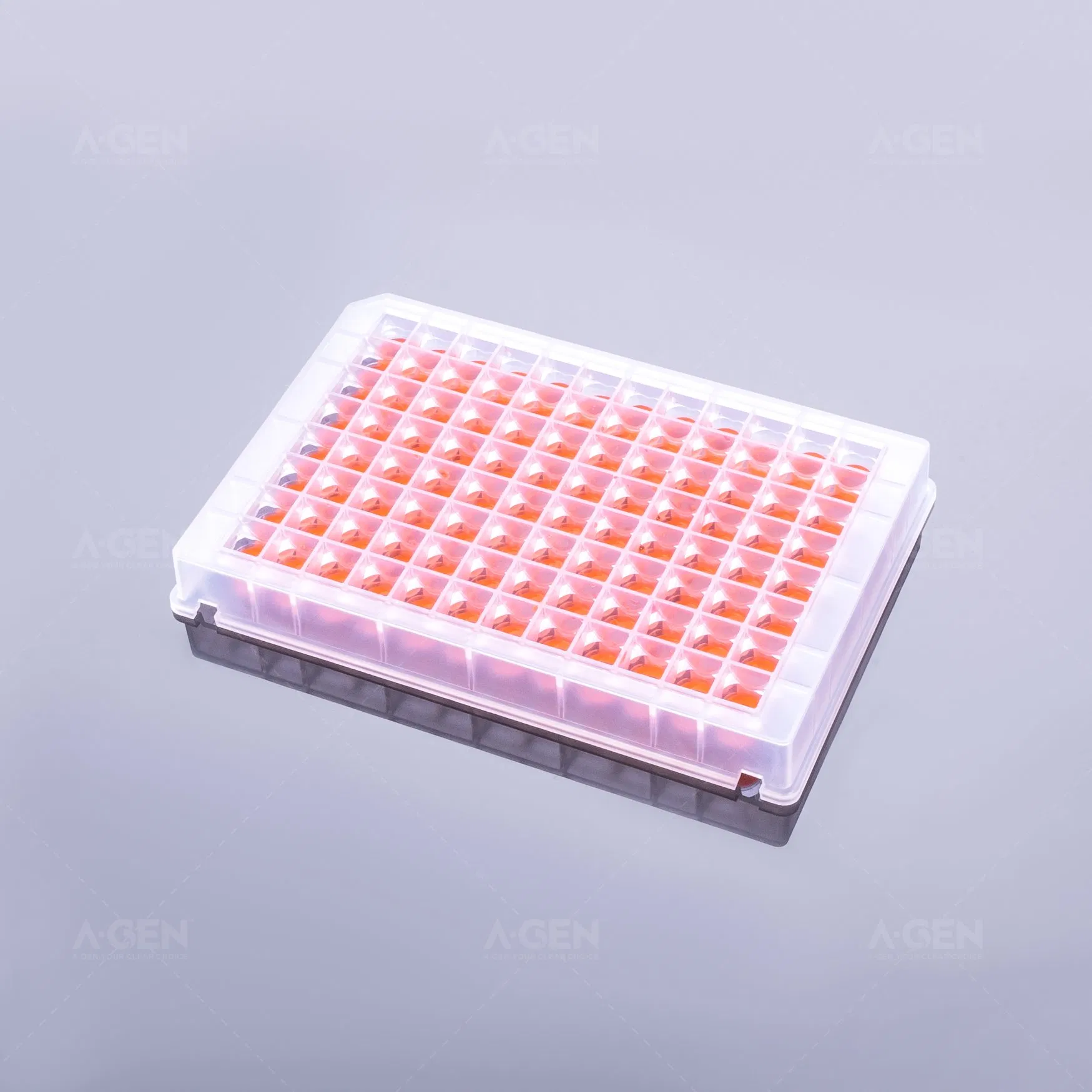

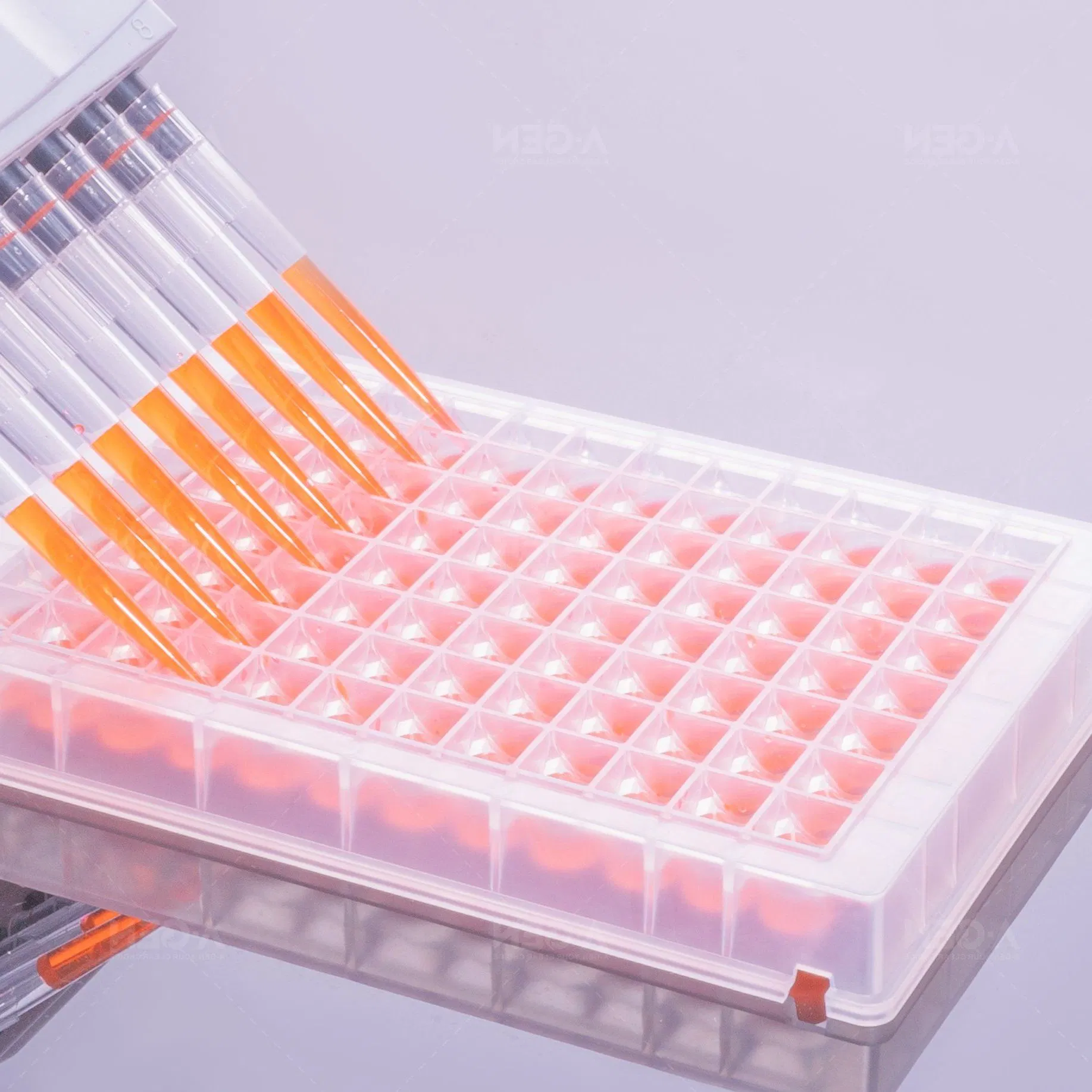

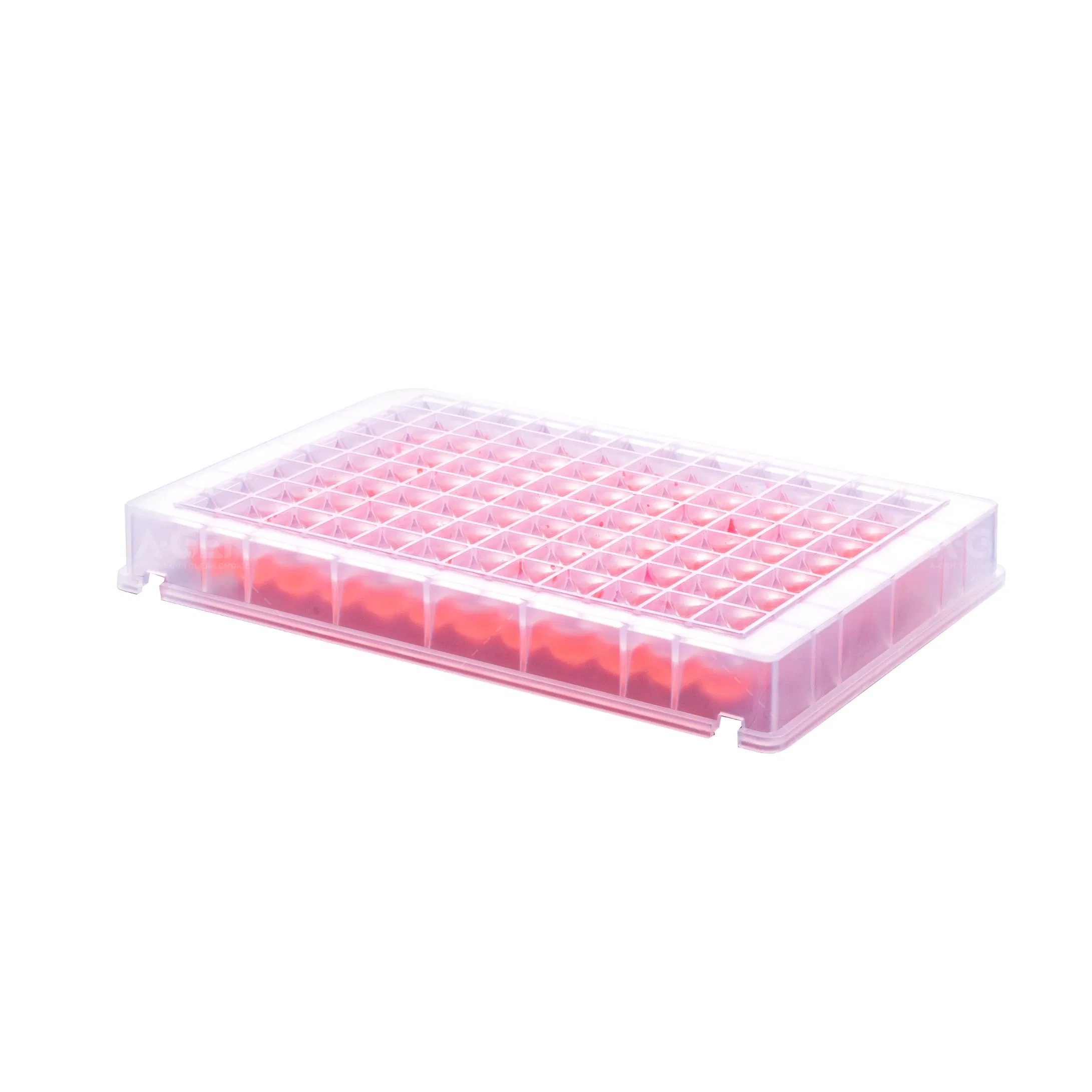

0.5ml PP, Sbs Square 96 V Bottom Deep Well Plate for Kf
0.5ml PP, Sbs Square 96 V Bottom Deep Well Plate for Kf
0.5ml PP, Sbs Square 96 V Bottom Deep Well Plate for Kf
0.5ml PP, Sbs Square 96 V Bottom Deep Well Plate for Kf
0.5ml PP, Sbs Square 96 V Bottom Deep Well Plate for Kf
1 / 5
0.5ml PP, Sbs Square 96 V Bottom Deep Well Plate for Kf
0.5ml PP, Sbs Square 96 V Bottom Deep Well Plate for Kf
0.5ml PP, Sbs Square 96 V Bottom Deep Well Plate for Kf
0.5ml PP, Sbs Square 96 V Bottom Deep Well Plate for Kf
0.5ml PP, Sbs Square 96 V Bottom Deep Well Plate for Kf

0.5ml PP, Sbs Square 96 V Bottom Deep Well Plate for Kf

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Product Information
Model NO.
P-0.5-SQV-96
Bottom Shape
V Shape
Color
Clear
Materials
Medical Grad Virgin Polypropylene
Well Numbers
96 Wells
Bottom Design
Square
Treatment
Sterile
Stability
High Chemical Stability
Standard
SBS / ANSI
Pryogenic
Non-Pryogenic
Transport Package
Plastic Bag Plus Carton
Package Size
60.00cm * 65.00cm * 70.00cm
Product Description & Features
0.5ml PP, SBS Standards, Square 96 Wells, V Bottom Deep Well Plate
  • High-performance plates for manual and automated applications, from -86°C storage to 100°C DNA denaturation.
  • Manufactured from pure medical-grade polypropylene (PP) for efficiency and stability.
  • High-contrast laser-engraved alphanumeric labeling for easy well identification.
  • Optimized well geometry for maximum sample recovery and excellent mixing properties.
  • Raised well rims and smooth surface provide reliable sealing, including heat sealing.

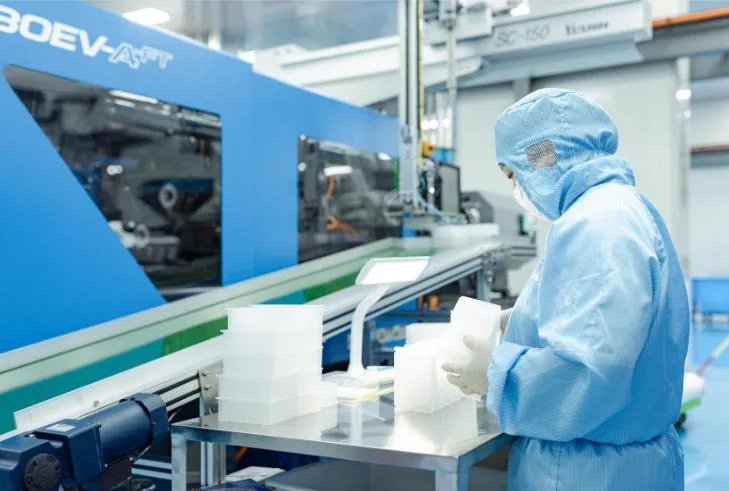

  • Produced in Class 100,000 clean-room; DNase/RNase-free and Non-pyrogenic.
  • Compatible with automated liquid transfer systems, HTS, and nucleic acid extraction.
Technical Parameters
Part Number Specification Packing Volume Description
96 Square Well Series
P-2.2-SQ-96505 plates/bag, 10 bags/case2.2mLTransparent, U-bottom
P-2.2-SQV-96505 plates/bag, 10 bags/case2.2mLV-bottom, suitable for KF, Frosted
P-0.5-SQV-9610010 plates/bag, 10 bags/case0.5mLV-bottom, suitable for KF
P-1.6-SQV-96505 plates/bag, 10 bags/case1.6mLV-bottom
96 Round Well Series
P-1.0-RD-96505 plates/bag, 10 bags/case1.0mLU-bottom, Independent well
P-1.0-RDV-96505 plates/bag, 10 bags/case1.0mLV-bottom
P-0.36-96V10010 plates/bag, 10 bags/case0.36mLMicroPlate, V-bottom
384 Square Well Series
P-120-SQ-38410010 plates/bag, 10 bags/case120ulV-bottom
P-240-SQ-38410010 plates/bag, 10 bags/case240ulV-bottom
Magnetic Tip Combs & Accessories
P-MT-96V5050 pcs/case-96 Magnet Tip combs, suitable for KF
P-TB-245050 pcs/case-24 Magnet Tip combs, suitable for KF
P-C25025 pcs/bag, 10 bags/case-CAP for Plate, PS material, Transparent
Product Visuals

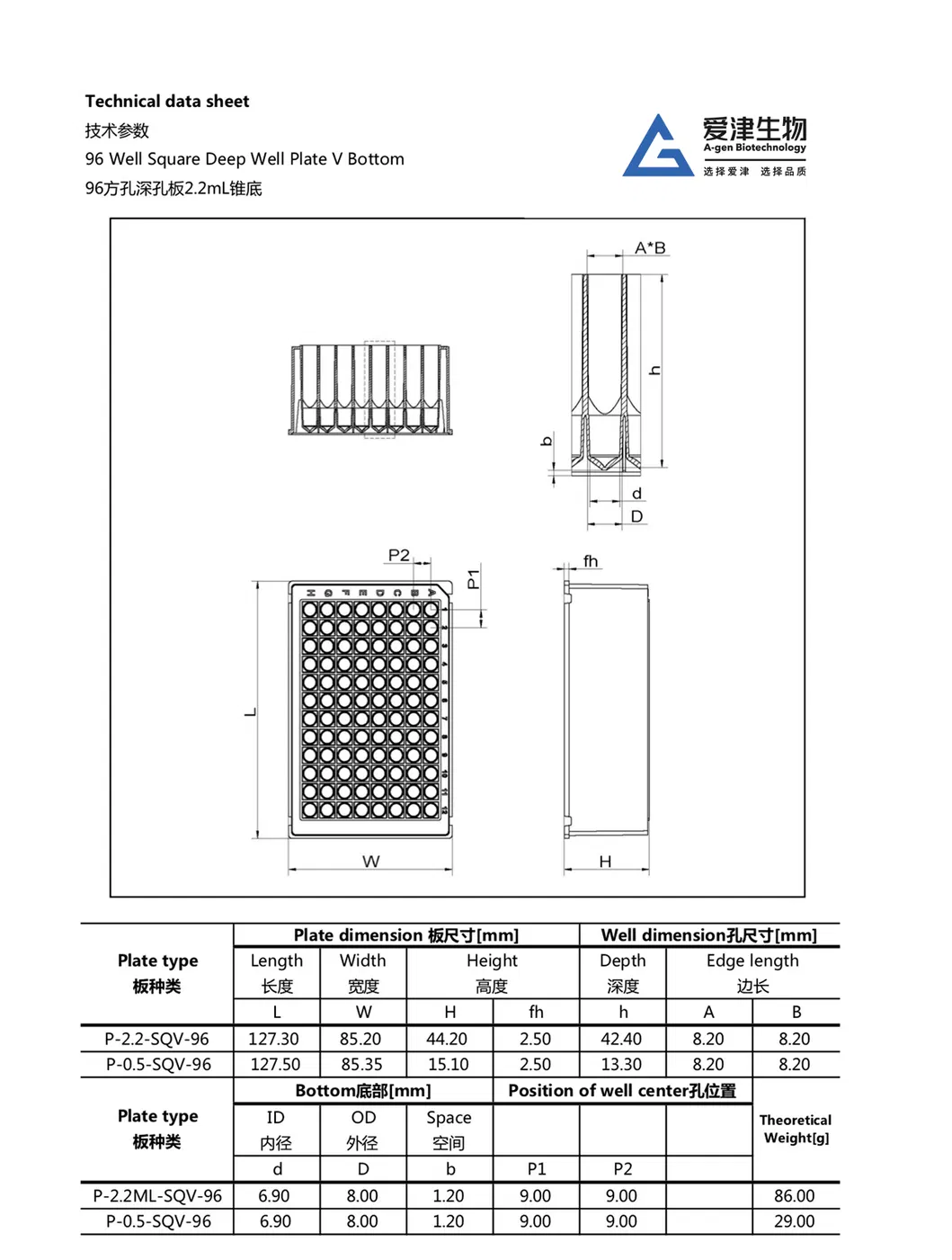

0.5ml Deep Well Plate Overview
Detailed Dimensions
Well Plate Grid
Plate Front View Plate Angle View
Frequently Asked Questions
What materials are used for these deep well plates?
The plates are manufactured from high-purity, medical-grade virgin polypropylene (PP), which ensures high chemical stability and compliance with USP Class VI standards.
Can these plates withstand extreme temperatures?
Yes, they are designed for high-performance use across a wide range, from sample storage at -86°C to DNA denaturation processes at 100°C.
Are the plates compatible with automated liquid handlers?
Absolutely. All plates follow standard SBS/ANSI footprints, making them fully compatible with multi-channel pipettes and automated liquid transfer systems.
What is the advantage of the V-bottom design?
The V-bottom geometry is optimized for maximum sample recovery and minimized residual volume, which is critical for high-value reagents and nucleic acid extraction.
Are these plates certified sterile?
Yes, they are manufactured in a Class 100,000 clean-room environment and are certified DNase-free, RNase-free, and non-pyrogenic.
What sealing options are available for these plates?
They support three primary sealing methods: self-adhesive seals, silicone sealing mats, and heat sealing films. Cap covers are also available for simple dust prevention.
